Ethernet

• ETH

  8 x ETH ports, 10/100/1000 Mbps, supports auto MDI/MDIX crossover

• Fibre

  2 x SFP ports

• IEEE 802.3 series standards

  802.3i, 802.3u, 802.3ab, 802.3x, 802.3az

POE OUT

• PoE ports

  Port 1 - 8

• PoE standards

  802.3af and 802.3at Alternative B

• PoE Max Power per Port (at PSE)

  30 W

• Total PoE Power Budget (at PSE)

  240 W

Performance Specifications

• Bandwidth (Non-blocking)

  20 Gbps

• Packer buffer

  128 KB

• MAC address table size

  2K entries

• Jumbo frame support

  9216 bytes

Power

• Connector

  2-pin industrial DC power socket

• Input voltage range

  7 – 57 VDC

• PoE-out input voltage range

  44 – 57 VDC

• Power consumption

  Idle: 1.81 W / Max: 5.5 W / PoE Max: 245.5 W

Physical Interfaces

• Ethernet

  8 x RJ45 ports, 10/100/1000 Mbps

• Fibre

  2 x SFP ports

• Status LEDs

  1 x Power LED, 16 x ETH status LEDs 2 x SFP status LEDs

• Power

  1 x 2-pin industrial DC power socket

• Other


  1 x Grounding screw

Physical Specification

• Casing material

  Full aluminum housing

• Dimensions (W x H x D)

  132 x 44.2 x 95.1 mm

• Weight

  517 g

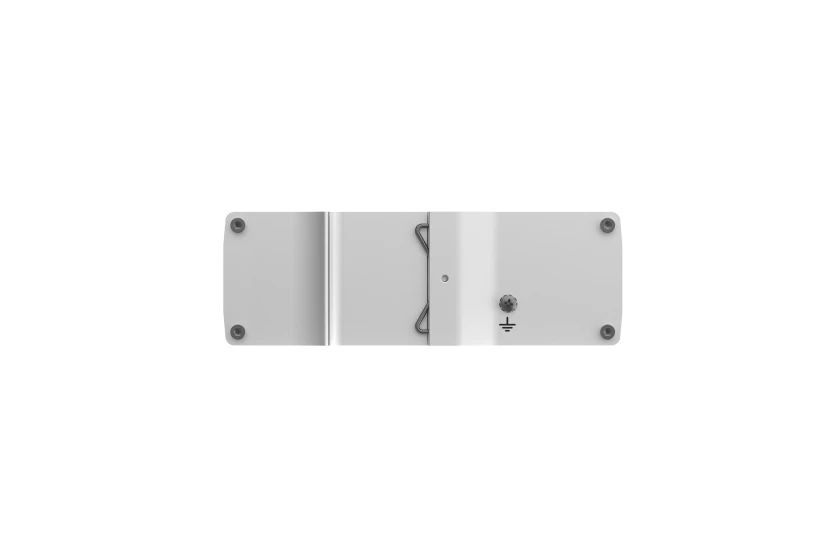

• Mounting options

  Integrated DIN rail bracket, wall mount, flat surface (additional kit needed)

Operating Environment

• Operating temperature

  -40 °C to 75 °C

• Operating humidity

  5% to 95% non-condensing

• Ingress Protection Rating

  IP30

Regulatory & Type Approvals

• Regulatory

  CE, UKCA, CITC, ANRT, FCC, IC, CB

EMC Emissions & Immunity

• Standards

  EN 55032:2015 + A1:2020

  EN 55035:2017 + A11:2020

  EN IEC 61000-3-2:2019 + A1:2021

  EN 61000-3-3:2013 + A1:2019

• ESD

  EN 61000-4-2:2009

• Radiated Immunity

  EN IEC 61000-4-3:2020

• EFT

  EN 61000-4-4:2012

• Surge Immunity (AC Mains Power Port)

  EN 61000-4-5:2014 + A1:2017

• CS

  EN 61000-4-6:2014

• DIP

  EN IEC 61000-4-11:2020

Safety

• Standards

  IEC 62368-1:2018

  EN IEC 62368-1:2020+A11:2020
